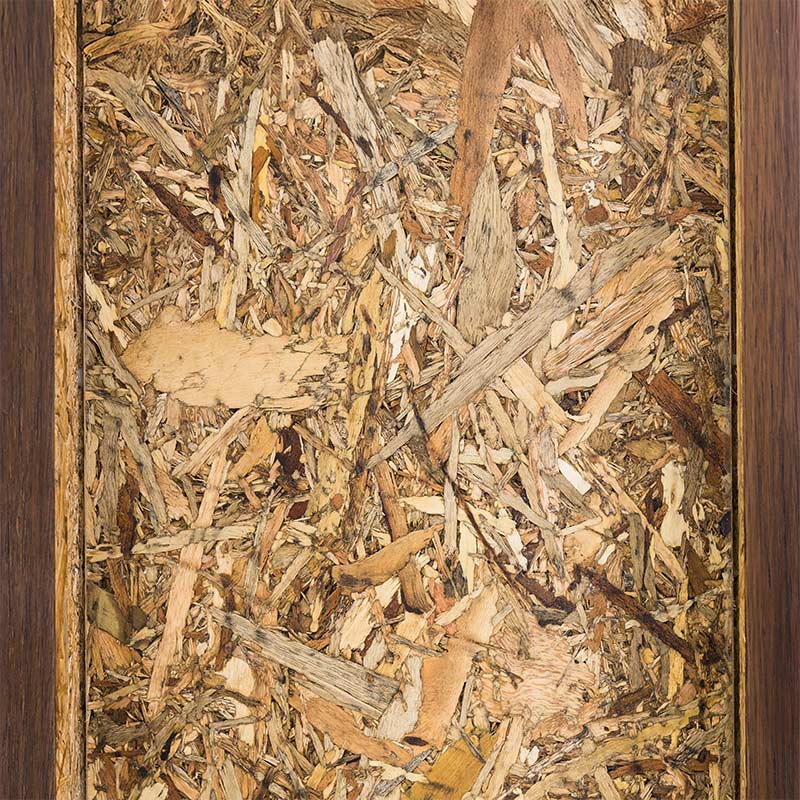

PSB® EcoCore FR.

Key PSB® EcoCore FR Information

  • PSB® EcoCore FR has been specifically engineered to incorporate specialized fire-retardant component, enhancing its application in critical structural elements such as door frames and shutters
  • By integrating advances fire-resistant additives during the manufacturing process, PSB® EcoCore FR achieves superior performance in terms of fire safety while (90 Minutes, 60 Minutes, and 30 Minutes) maintaining durability, according to EN-1634-1 (European standard for fire resistance), BS-476 (British standard for fire tests on building materials and structures), and UL-10C (American standard for fire tests of door assemblies).

Specifications

Modulus of Rupture 10 – 20 N/mm2
Modulus of Elasticity 2,500 N/mm2
Internal Bonding 0.23 – 0.30 N/mm2
Thickness Swelling 20%
ASTM E84 Class A SI 0-25; SDI 0-450
ASTM E84 Class B FSI 26-75; SDI 0-450
ASTM E84 Class C FSI 76-200; SDI 0-450
Technical Datasheet Certificates Get In Touch

PSB® EcoCore FR Applications.

Fire Rated Door Cores

PSB® EcoCore FR is certified for 30, 60, and 90 minutes under globally recognized fire safety standards, including EN-1634-1 (European...

Best Practices.

It is recommended to coat the boards to enhance their durability and resilience against moisture, thereby ensuring their reliability in load-bearing applications.

For optimal performance of PSB® EcoCore FR, it is recommended to use the boards in environments with low moisture exposure to ensure their longevity.

For components being fastened, such as beams, rafters, joists, and trusses, pre-drilling is essential. The diameter of the pre-drilled hole should be smaller than the screw diameter to ensure effective engagement of the screw threads.

During transportation and storage, avoid direct exposure to water droplets and precipitation on the edges and surfaces of PSB® boards. Adequate protective covers should be provided to safeguard the boards.

Use screws, nails, or staples for fastening, ensuring the length is at least 2.5 times the board thickness, but not less than 50-75 millimeters (mm). Fastening should occur at intervals of 150-300 millimeters (mm) on intermediate supports, depending on specific application requirements.

Customizable Finishes.

Raw Board

A wide range of uncoated boards, used as a core material, offering flexibility for customization and finishing.

Melamine Face Finishing

A smooth, decorative melamine-surfaced board, perfect for furniture, cabinetry, and interior applications.

Sanded Board

A Smooth, sanded surface board, ideal for interior fit-outs and paneling, ensuring enhanced finish quality and easy customization.

Premium Surface (Putty) Finishing

A flawless, smooth-surfaced board achieved with putty, ideal for high-quality paint applications and achieving a polished, refined look.

Premium Plus Surface (Coated) Finishing

A flawless, smooth-surfaced board achieved with putty, ideal for high-quality paint applications and achieving a polished, refined look.

Veneer Finishing

A decorative-finished board using thin layers of real material, offering a natural look, durability, and customization options.
