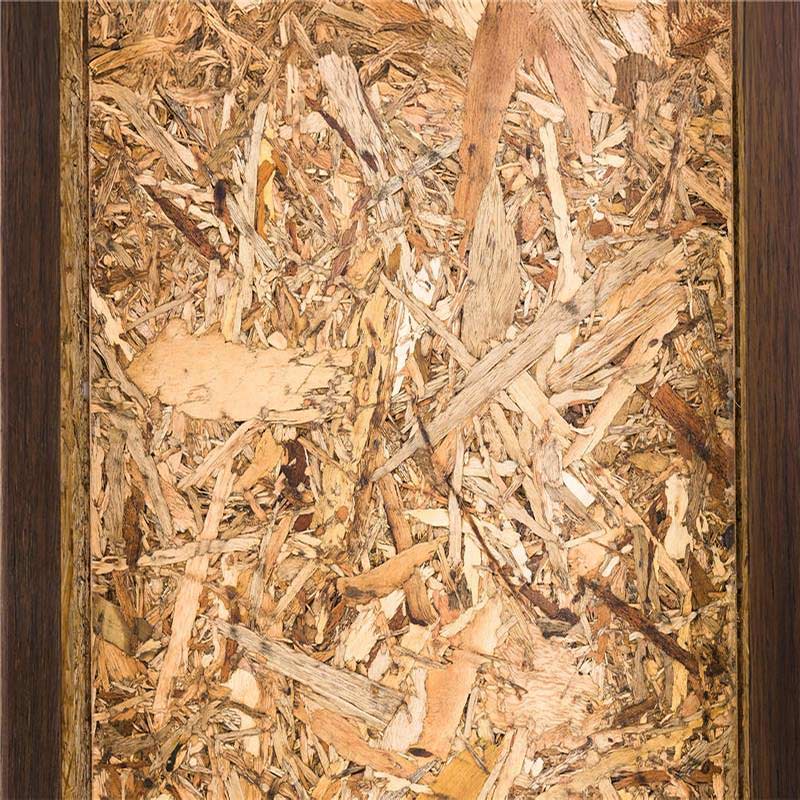

PSB® EcoCore Supreme.

Key PSB® EcoCore Supreme Information

  • PSB® EcoCore Supreme is specifically tailored for use in door cores or frames, ensuring optimal performance in these critical applications.
  • While PSB® EcoCore Supreme is designed for individual use in door construction, its properties make it an excellent choice for enhancing the structural integrity and aesthetics appeal of doors.
  • PSB® EcoCore Supreme exhibits excellent moisture resistance, with a maximum thickness swelling of 15%. PSB® EcoCore Supreme, when coated properly, results in a thickness swelling of less than 5%.
  • Modulus Strength IconPSB® EcoCore Supreme demonstrates high performance in terms of modulus of elasticity, measuring 3,500 Newtons per square millimeter (N/mm²), and modulus of rupture at 14 Newtons per square millimeter (N/mm²).

Specifications

Modulus of Rupture 14 N/mm2
Modulus of Elasticity 3,500 N/mm2
Internal Bonding 0.26 N/mm2
Thickness Swelling 15% 
Width 1,200 – 1,250 mm 
Length 1,830 – 3,048 mm
Thickness 30 – 38 mm 
Technical Datasheet Certificates Get In Touch

PSB® EcoCore Supreme Applications.

Non Fire Rated & Acoustic Door Cores

High-performance door cores designed for durability and sound reduction, suitable for various residential and commercial applications.

Best Practices.

It is recommended to coat the boards to enhance their durability and resilience against moisture, thereby ensuring their reliability in load-bearing applications.

For optimal performance of PSB® EcoCore Supreme, it is recommended to use the boards in environments with low moisture exposure to ensure their longevity.

For components being fastened, such as beams, rafters, joists, and trusses, pre-drilling is essential. The diameter of the pre-drilled hole should be smaller than the screw diameter to ensure effective engagement of the screw threads.

During transportation and storage, avoid direct exposure to water droplets and precipitation on the edges and surfaces of PSB® boards. Adequate protective covers should be provided to safeguard the boards.

Use screws, nails, or staples for fastening, ensuring the length is at least 2.5 times the board thickness, but not less than 50-75 millimeters (mm). Fastening should occur at intervals of 150-300 millimeters (mm) on intermediate supports, depending on specific application requirements.

Customizable Finishes.

Raw Board

A wide range of uncoated boards, used as a core material, offering flexibility for customization and finishing.

Melamine Face Finishing

A smooth, decorative melamine-surfaced board, perfect for furniture, cabinetry, and interior applications.

Sanded Board

A Smooth, sanded surface board, ideal for interior fit-outs and paneling, ensuring enhanced finish quality and easy customization.

Premium Surface (Putty) Finishing

A flawless, smooth-surfaced board achieved with putty, ideal for high-quality paint applications and achieving a polished, refined look.

Premium Plus Surface (Coated) Finishing

A flawless, smooth-surfaced board achieved with putty, ideal for high-quality paint applications and achieving a polished, refined look.

Veneer Finishing

A decorative-finished board using thin layers of real material, offering a natural look, durability, and customization options.
